A fire pump room shop drawing is one of the hardest MEP drawings to produce from scratch: suction from the water tank, pump alignment, discharge manifold, alarm valve bank, test line back to the tank, sensing lines, control panels and every support, all coordinated in one room. This page gives you two free fire pump room DWG files from real projects. The main drawing is a complete package: layout plan, four sections, isometric with valve schedule, control panel details, NFPA 20 sensing line detail and pipe support details. The second drawing is a pump room layout with electric and diesel fire pumps.

Both files are free to download at the end of this post. Want them right away? Jump to the fire pump room DWG download.

Fire pump room layout plan DWG with 200 mm suction lines from the water tank, discharge manifold, test line and anti-vortex plates

File Information

Item Drawing 1: Complete Pump Room Package Drawing 2: Pump Room Layout
File name FIRE-FIGHTING-PUMP-ROOM.dwg Fire Pump Room – Detailed Plan
Pumps shown 2 electric fire pumps, jockey pump, ATS Electric and diesel fire pumps, jockey pump
Contents Plan, sections A to D, isometric, panels, sensing line, supports Layout plan, sections and installation details
File type .dwg .dwg (AutoCAD 2010 and later), about 6.1 MB
Usage Free for personal and professional use

What Is in the Main Fire Pump Room DWG?

  • Pump room layout plan with all piping, dimensions and bottom-of-pipe (BOP) levels
  • Sections A-A, B-B and C-C, and tank connection Section D-D
  • Isometric view of the complete pump room with an 11-item valve and fittings schedule
  • Control panel details for 2 electric pump sets, the jockey pump and the ATS
  • Pressure sensing line detail as per NFPA 20
  • Pipe support details: wall mounted, floor mounted (height adjustable), channel supports and sensing line supports

Fire Pump Room Layout Plan

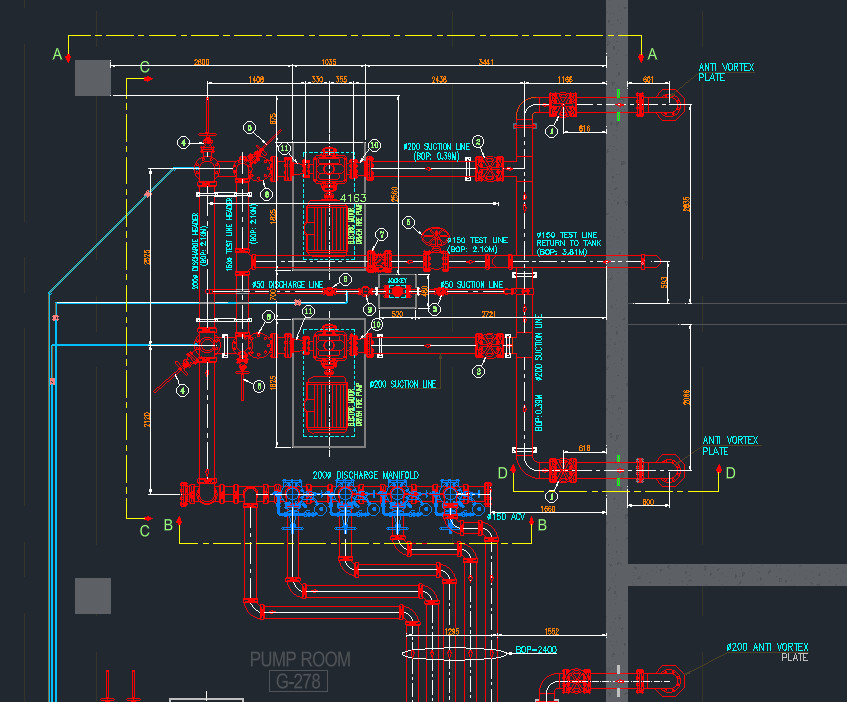

The plan shows the pump sets drawing from the fire water tank through two Ø200 suction lines (BOP 0.39 m), each ending in the tank with an anti-vortex plate. The jockey pump takes a separate Ø50 suction. Discharge collects in a Ø200 discharge manifold feeding the alarm valve bank, with a Ø150 automatic control valve (ACV) and a Ø150 test line returning to the tank (header at BOP 2.10 m, return at BOP 3.81 m), so the pumps can be flow-tested without wasting water. Every run is dimensioned and level-tagged, as a consultant expects on a pump room submittal.

Isometric View with Valve Schedule

Fire pump room isometric view with OS&Y gate valves, check valves, flow meter and jockey pump piping keyed to the parts list

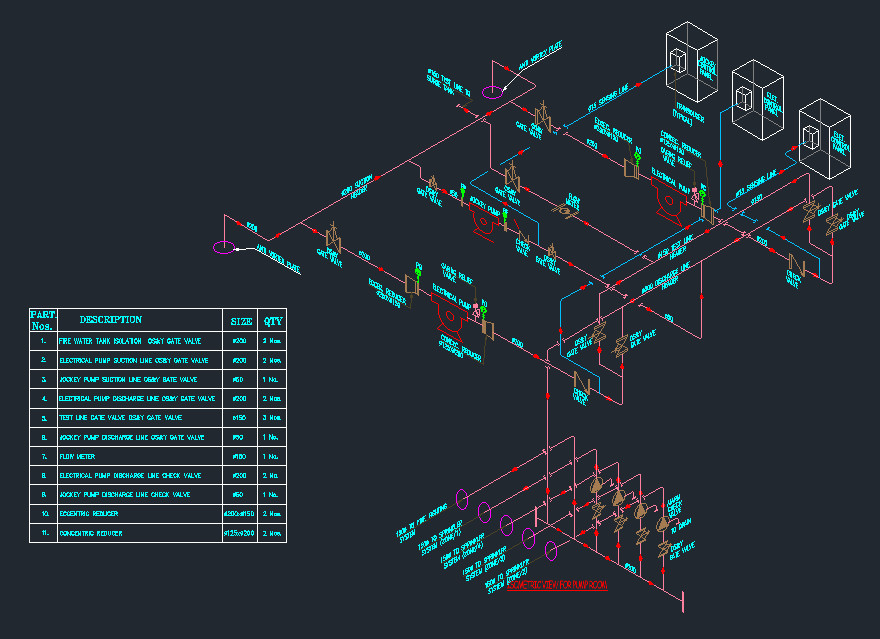

The isometric ties the whole room together and is keyed to an 11-item schedule, which makes the valve material take-off quick:

  • Ø200 O.S.&Y. gate valves: tank isolation (2), pump suction (2) and pump discharge (2)
  • Ø50 O.S.&Y. gate valves: jockey suction and discharge
  • Ø150 gate valves on the test line (3) with a Ø150 flow meter
  • Ø200 check valves on the electric pump discharge (2) and a Ø50 check valve on the jockey discharge
  • Eccentric reducer 200×150 on suction and concentric reducers 125×200 on discharge

The isometric also shows the sensing lines from the discharge header to each controller, the tank fill and drain connections, and the distribution to four sprinkler zones and the wet riser.

Pump Room Sections (A-A, B-B, C-C, D-D)

Fire pump room section showing electric fire pump, jockey pump, suction and discharge headers with 150 mm test line

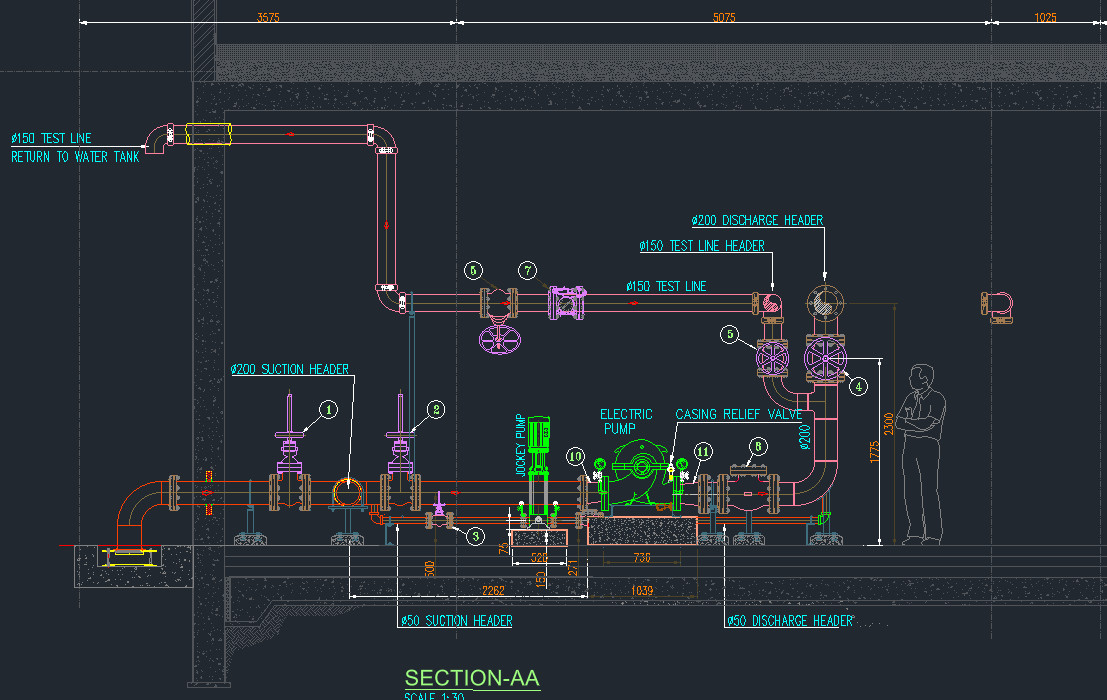

  • Section A-A cuts through the pump train: the Ø200 suction header with O.S.&Y. valves, the vertical jockey pump, and the horizontal split-case electric pump with its casing relief valve. It rises to the Ø200 discharge header and the Ø150 test line header at 2300 mm. Pump pads are about 730 mm for the main pump and 520 mm for the jockey, 150 mm high.
  • Section B-B shows the alarm valve bank: four alarm check valves at 750 mm spacing on the Ø200 manifold, each with a Ø15 line to the alarm gong, feeding Ø150 risers to sprinkler zones 1 to 4 and a Ø150 line to the wet riser. BOP is 2400 mm and the room clear height is 4500 mm.
  • Section C-C shows the two electric pump sets side by side on 1825 mm pads, with the jockey pump between them on a 480 mm pad.
  • Section D-D details the tank wall crossing: puddle flange through the concrete wall, 600 mm stub, isolation valve and the anti-vortex plate at the tank floor.

Control Panels and ATS

The DWG includes dimensioned elevations and side views of all controllers: two electric pump controllers (610 × 1372 × 363 mm), a jockey pump controller (305 × 305 × 200 mm) and the automatic transfer switch (ATS). Each is wall mounted with its transducer, sensing line inlet, ball valve and drain. The section also shows the wall space reserved for the panels (800 × 1500 × 350 mm for each electric pump panel), so the electrical contractor knows what to keep free.

Pressure Sensing Line Detail (NFPA 20)

Fire pump pressure sensing line detail as per NFPA 20 with two half inch check valves with drilled clappers

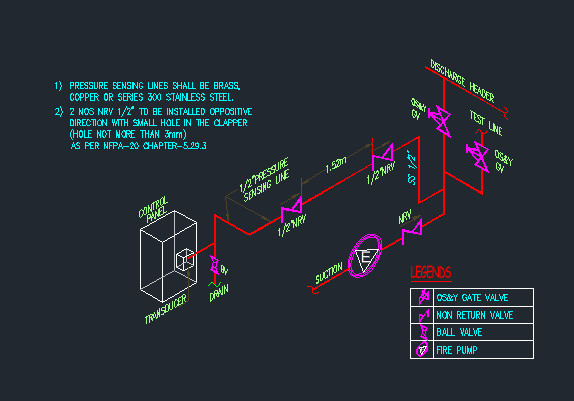

This is the detail every civil defense inspector checks. As per NFPA 20, each controller gets its own sensing line from the pump discharge, and the line must have:

  • ½ in. (15 mm) nominal size in brass, rigid copper (Type K, L or M) or Series 300 stainless steel. Black steel and soft copper tubing are not allowed.
  • Two check valves at least 5 ft (1.52 m) apart, each with a nominal 3/32 in. (2.4 mm) hole drilled in the clapper to dampen pressure surges.
  • A test connection with valves at the controller end, so the pressure switch can be tested.

The DWG also includes a floor support detail for the Ø15 sensing lines (U-bolts on a common base at EL +0.10 m), which keeps the lines from being kicked or crushed in the pump room.

Pipe Support Details

  • Wall mounted: 100 × 50 steel channel, M10 galvanized anchor bolts with plate washers, M10 threaded U-bolts, pipe hanger on threaded rod, and a 75 × 75 × 8 mm angle bracket option.
  • Floor mounted: height-adjustable stand on M16 threaded rods with 10 mm thick G.I. plates on housekeeping pads, plus U-channel supports for pipe pairs at 450 mm centers.

Drawing 2: Fire Pump Room Layout with Electric and Diesel Pumps

The second DWG is a fire pump room from another project. It shows the layout for electric and diesel fire pumps with a jockey pump, the suction and discharge piping with clearances, the control panel locations, door access and ventilation positions, with annotations and dimensions. Use it as a reference when your project has a diesel standby pump instead of a second electric pump.

AutoCAD fire pump room layout with electric and diesel fire pumps and jockey pump

Fire pump room sections and installation details DWG

Practical Notes

Point Why It Matters What to Do
Suction reducer A concentric reducer on suction traps air at the top of the pipe, which can cause cavitation and loss of prime Use an eccentric reducer with the flat side up, as shown in the schedule
Suction pipe size NFPA 20 limits suction velocity to 15 ft/s (4.6 m/s) at 150% of the rated pump flow Recheck the suction size whenever you change the pump capacity
Sensing line Wrong material or missing check valves fail inspection Use ½ in. brass, rigid copper or Series 300 stainless steel with the two drilled check valves
Test line return Water returned close to the suction can disturb the flow into the pump Keep the test line return away from the suction connections in the tank
Pump pads and panels Pad and panel sizes in the DWG are from one project Update them from your approved pump, controller and ATS submittals

How to Adapt This Pump Room DWG to Your Project

Update the pipe sizes and pump pads to match your hydraulic calculation and approved pump submittal, check the sensing line routing against your controller supplier’s manual, and recheck the zone count on the alarm valve manifold. For the electrical side, size the pump feeders and panel with our Electrical Panel Load Calculator and check motor power factor correction with the Power Factor Calculator.

Download Fire Pump Room DWG

Click below to download the drawing you need. The link will appear after a short wait.

Drawing 1: Complete Pump Room Package

Layout plan, sections, isometric with schedule, control panels, NFPA 20 sensing line detail and pipe supports in one AutoCAD file.

Checking…

Drawing 2: Pump Room Layout with Diesel Pump

Fire pump room layout with electric and diesel fire pumps and jockey pump, about 6.1 MB.

Checking…

Related Downloads

Frequently Asked Questions

Is this fire pump room DWG free to download?

Yes. Both drawings are free to download and use in your projects, with no registration.

What is the difference between the two drawings?

Drawing 1 is a complete package for a pump room with two electric fire pumps: plan, sections, isometric, control panels, sensing line and supports. Drawing 2 is a pump room layout from another project with electric and diesel fire pumps.

What pumps does the main drawing show?

Two electric fire pump sets with an automatic transfer switch and a vertical jockey pump, drawing from a fire water tank through Ø200 suction lines with anti-vortex plates. If your project uses a diesel standby pump, see Drawing 2.

Why must the suction reducer be eccentric?

An eccentric reducer installed flat side up keeps the top of the suction pipe level, so no air pocket forms ahead of the impeller. A concentric reducer on suction traps air and can cause cavitation.

What does NFPA 20 require for the pressure sensing line?

A ½ in. line in brass, rigid copper or Series 300 stainless steel for each controller, with two check valves at least 5 ft (1.52 m) apart, each with a nominal 3/32 in. (2.4 mm) hole drilled in the clapper.

What is the test line in the pump room for?

The Ø150 test line with its flow meter lets you run the full-flow test of the fire pumps and return the water to the tank instead of dumping it to drain.

Can I use this drawing for my shop drawing submittal?

Yes. Insert it in your title block, update sizes and levels to match your design, and coordinate it with your approved pump, controller and valve submittals.

Need another pump room arrangement or a fix in these files? Leave a comment below. Stay connected with MEPBase.com for more fire fighting DWG files, CAD blocks and calculators.
